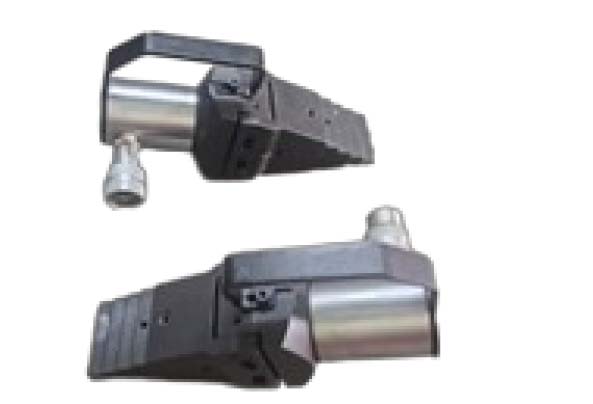

Stubborn Joint Separaon: 3S Wedge Spreaders and Flange Spreaders are designed specifically for separang
stubborn joints without causing damage to the components. This is parcularly useful for joints with ring grooves
or those under external forces that make them difficult to separate.
Safety and Damage Prevenon: Tradional methods like hammers, wedges, chain blocks, and lever bars can pose
safety risks and potenally damage joint components. 3S Spreaders provide a safer alternave by ulizing
controlled spreading forces to separate joints without causing harm.
Applicaons: These spreaders are versale tools used in various applicaons such as shutdowns, tesng, and
pipeline maintenance. They can be part of Standard Kits or Maxi Kits, depending on the specific needs of the task
at hand.
By offering controlled spreading forces and precision engineering, 3S Wedge Spreaders and Flange Spreaders
provide an ideal soluon for safely separang stubborn joints during maintenance and inspecon procedures,
minimizing risks and ensuring the integrity of the components involved.
Features
-> Operated by hydraulic pump with rated pressure of 700 bar (10 000 psi) hydraulic pressure applied
-> Required very small access gap of only 6mm
-> Each step spreading distance is 20mm
-> Maximum spreading distance is 61mm
-> Use stepped blocks to increase wedge opening up to 81 mm
-> Includes Safety blocks
Supplied with 3/8 male coupler and dust cap
Safe and reliable hydraulic system
SPREADING FORCE:
with 700 bar (10 000 psi) hydraulic pressure applied: 14 ton (140 KN) per tool
| Maximum Spread | Tip Clearance | Maximum Spread | Maximum wt. Spread blocks | Tool Weight |
|---|---|---|---|---|
| 14 (140 KN) | 6mm | 61mm | 80mm | 9.0 kg (15.4 lb) |
